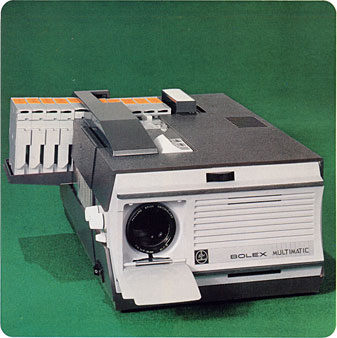

Multimatic

Specifications of the Paillard Bolex cartridge loading Multimatic movie projector for Super 8 film

Specifications

Overall Dimensions: 15" x 9 1/4" x 6 1/2"
Weight: (With lens) 20 lbs.
Construction: Cast aluminum and plastic; Carrying handle; Power cord storage compartment.
Reel Capacity: Special retaining cartridges hold 50ft spools of super 8mm film; Chamber holds up to 6 cartridges.
Threading: Cartridges are placed into a chamber; Projection starts by simply opening the chamber door. Threading and cartridge change is fully automatic. Cartridges are rewound, and new cartridges can be inserted, while one cartridge is projected.
Power: Multiple versions: 1) 120 V, 60 Hz; 2) 145 V, 50 Hz; 3) Multivoltage
Lamp: 21 V/150 W halogen lamp with dichroic reflector. Modern replacement: EJA 21V 150W
Lens: Four interchangeable lenses were available: Bolex Hi-Fi 20mm f/1.3; Bolex Hi-Fi 23mm f/1.1; Bolex Hi-Fi 17-34mm f/1.1; Kern Vario Switar 12-30mm f/1.3
Variable Speed: 18 and 24 frames per second, forward or reverse; Slow motion at 6 or 8 frames per second, forward or reverse; Still projection; Rewind.
Other Features: Brightness control switch allows lamp illumination to be reduced; Height adjustment with milled knob and levelling; Built-in holder for miniature screen; Zoom, focus and framing controls.
