Model G
- Format
- 8mm / 9.5mm / 16mm
- Introduced
- 1936
Introduced in 1936 in "monofilm" and "multifilm" models; the multifilm included a tool-free parts kit of reel spindles, sprockets, gate and guide-rollers to adapt the projector to various film gauges.

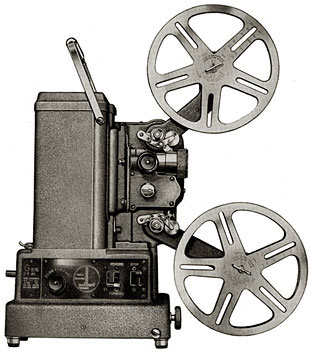

Bolex Model G Projector
Bolex geared transport

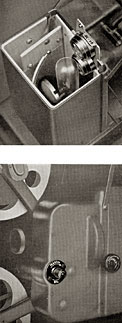

Bolex Model G
Specifications
- Overall Dimensions
- 13 1/2" x 6 1/2" x 4 3/4"
- Weight
- 14 lbs (6.3 kg)
- Construction
- Grey satin finish; Chrome plated guide rollers and sprockets; Chrome plated carrying handle with bakelite grip.
- Reel Capacity
- 400 ft reel arms; 800 foot reel arms were available at an additional cost.
- Threading
- Manual threading with locking guide rollers to prevent jamming.
- Power
- Runs on 110-120v AC or DC power supply. A built-in illuminated ammeter indicates the current supplied to the projection lamp.
- Lamp
- G.E. Westinghouse or Radiant 750 watt (500 watt optional), 110 volt prefocus bulb. Modern replacement: DDB or CZX bulb
- Lens
- Interchangeable lenses of various focal lengths; Micrometer focusing.
- Variable Speed
- 12 to 24 frames per second; Reverse and still projection; Rapid motor rewind.
- Other Features
- Gear driven film transport; Direct draft ventilation and cooling of lamp and film; Adjustable base with tilting screw for proper alignment of projected image;
