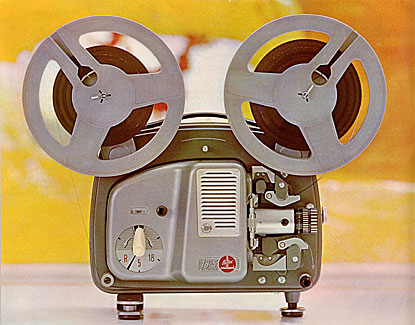

18-5 Auto

Specifications and history of the Paillard Bolex 18-5 Automatic loading 8mm projector.

Specifications

Overall Dimensions: 10 1/2" x 8 1/2" x 6 1/2"
Weight: 15 1/4 lbs.
Construction: Cast aluminum; Two-tone grey finish; Carrying handle; Detachable cover.
Reel Capacity: Reel arms accommodate 400 ft reels. Both reel arms fold downward for storage.
Threading: Automatic threading device feeds the film into position and forms the loops to the correct length; Manual threading and unloading possible, if desired. Lens assembly pivots outward for cleaning of gate and unloading of film.
Power: Two versions: 1) 50 cycle 110-240v AC power; 2) 60 cycle 110-125v AC power.
Lamp: 8 volt, 50 watt lamp. Modern replacement: CXR 8V/50W
Lens: Interchangeable lenses; Originally supplied with a choice of Bolex Hi-Fi f/1.3 lenses of 15mm or 20mm focal length or with the Bolex Hi-Fi f/1.3 12.5-25mm zoom lens.
Variable Speed: 18 and 5 frames per second; 18fps reverse projection; Rapid motor rewind. Forward or reverse motion with lamp switched off at 18fps.
Other Features: Bolex anamorphic lens is easily attached to built-in holder for widescreen projection; Framing knob adjusts the claw for vertical alignment in the gate; Front leg for height adjustment and rear legs for leveling; Variable shutter automatically changes from three to nine blades when projection drops to 5fps; Catathermic filter preserves the film from excessive heating; A table lamp can be attached which switches off when the projector is running and relights again when stopped.
